ROUND COLUMN / COMMERCIAL PROJECTS
Choose a circular lifting-column profile for single desks, L-shaped workstations, or facing two-person benching. Configure the workstation system around the office plan, finish, controls, electrical market, and delivery brief.
THE ROUND COLUMN ROUTE
A round column standing desk frame is an electric lift base with a circular visible column cross-section. It gives project teams a distinct visual direction while retaining the appropriate D23RS, T33RS, or Q43RS workstation route.
Start with the floor plan and required desk form. Then use the round-column option to align the finished workstation with the interior, finish, controls, cable plan, and destination requirements.
ROUND COLUMN MODEL SELECTION
The round column is available as a visible column option for the corresponding model. Select the base configuration from the number of users and the desk geometry, not from the column shape alone.
PROJECT BENCHING
A four-motor, four-column route for two independently adjustable workstations facing each other.

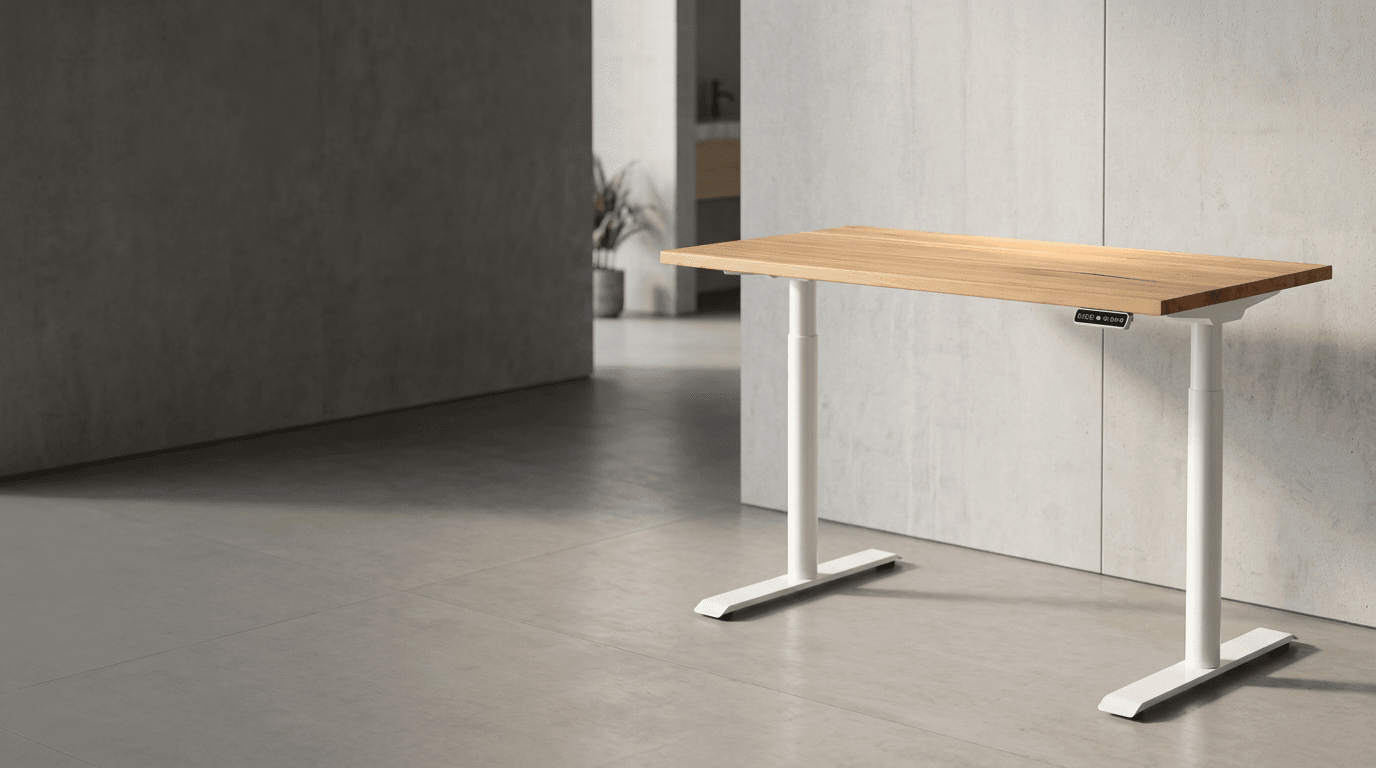

STANDARD OFFICE DESK
A dual-motor, two-leg, three-stage frame for independent workstations and repeatable office layouts.

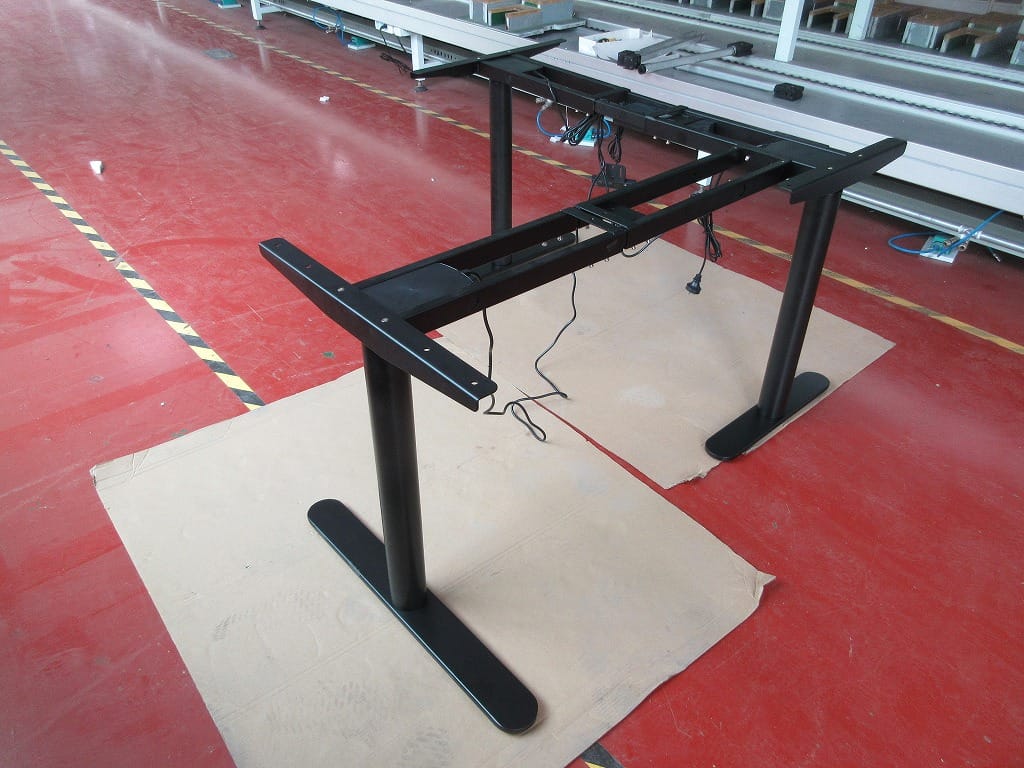

CORNER AND PRIVATE OFFICE
A three-motor, three-leg, three-stage route for an L-shaped desktop plan with two connected work surfaces.
WORKSTATION COMPARISON
Public performance information follows the corresponding Q43RS, D23RS, and T33RS model. Confirm desktop dimensions, equipment, accessories, and planned moving load before the final configuration is quoted.
| Round model | Best project use | Structure | Frame width | Public dynamic load | Model page |
|---|---|---|---|---|---|
| Q43RS RoundFacing two-person | Open-plan benching with two independent positions and a planned shared cable route. | 4 motors / 4 columns / 3-stage | D23-compatible range per workstation | 130 kg per workstation | View Model -> |
| D23RS RoundSingle workstation | General office standards, perimeter desks, focus areas, and independent desks. | 2 motors / 2 legs / 3-stage | 1050-1800 mm | 130 kg | View Model -> |
| T33RS RoundL-shaped workstation | Private offices, corners, and users needing two connected desktop wings. | 3 motors / 3 legs / 3-stage | 1050-1800 mm per side | 190 kg | View Model -> |
SQUARE OR ROUND COLUMN
The two options describe the visible column cross-section. The final choice should support the project design language, workstation form, finish, and accessory plan. It is not a claim that one column shape delivers a different performance level.
Round Column selected for the circular cross-section. Confirm the selected base model and complete workstation scope in the quotation.
CONFIGURATION BASELINE
The base model determines workstation geometry. The configuration review then aligns height range, desktop, finish, controls, electrical system, cable management, and packaging.
D23RS, T33RS, and Q43RS use the Standard, Europe, or US height families. Finished desk height also depends on desktop thickness and floor conditions.
Black, white, and silver gray are the standard finishes. Eligible RAL colors and structural changes require separate project review.
Controller features, voltage, frequency, plug standard, and power-cable plan are selected for the confirmed destination and frame model.
Cable trays, cable spines, power/data openings, and monitor arms can be reviewed when included in the project brief.
PROJECT APPLICATIONS
Use Q43RS Round for facing benching, D23RS Round for single desks, and T33RS Round for corner or private-office plans.
Commercial project route ->Align the frame model, finish, controller, packaging, and destination requirements around the dealer's planned order program.
Wholesale supply route ->Review RAL finish, controls, hardware details, branding, and packaging after the model family and project quantity are clear.
Custom and OEM route ->MOQ, DELIVERY & WARRANTY
Round-column projects are quoted against the selected model, completed configuration, quantity, destination, and target schedule. The quotation confirms final feasibility, responsibilities, and delivery terms.
Normal minimum for a round-column project program.
Standard orders. Custom colors normally add 1-2 weeks.
Five years for frames; three years for motors, control boxes, and hand controls.
Can include export clearance, international transport, import clearance, duties, and delivery for supported destinations.
Confirm destination eligibility, site access, unloading, and the exact quoted scope.Normally includes export clearance, ocean freight, and insurance to the named destination port.
Destination clearance, duties, local charges, and final delivery remain to be confirmed.Product supply and export delivery to the confirmed Ningbo port are set out in the quotation.
Main freight, insurance, destination clearance, and local delivery remain buyer-side responsibilities.BUYER QUESTIONS
These answers describe the current B&H round-column project route. Final specifications, commercial terms, and delivery details are confirmed in the quotation.
BH-Q43RS Round is the route for two independently adjustable workstations facing each other. It uses four motors and four columns, with a public dynamic load of 130 kg per workstation. Review the benching layout, desktop plan, cable route, and complete project quantity before quotation.
The square and round options describe the visible column profile. Public structure, functions, and performance specifications remain those of the corresponding Q43RS, D23RS, or T33RS model. The final configuration is confirmed in the quotation.
Round-column variants normally require a minimum of 100 workstations. Confirm the model mix, destination, finish, controls, and any custom requirements so the applicable project threshold can be reviewed accurately.
Yes, subject to model and project review. Standard black, white, and silver gray finishes are available, while eligible RAL colors require a separate review. Controller features and the electrical setup are selected around the destination voltage, frequency, plug, and cable plan.
DDP door delivery can be quoted for supported destinations. Availability, exact scope, cost, transit time, site access, and unloading responsibility are confirmed for the quoted destination. CIF and FOB routes can also be evaluated.
Share the preferred model or workstation form, total quantity, destination, desktop dimensions, finish, controller features, power standard, cable accessories, packaging needs, and target schedule. A floor plan or workstation schedule helps establish the correct model mix.
READY TO DEFINE THE PROJECT?
B&H replies within 48 business hours with the next specification or quotation questions.
