4 motors
4 columns / 3-stage
BH-Q43RS / FACING TWO-PERSON WORKSTATION

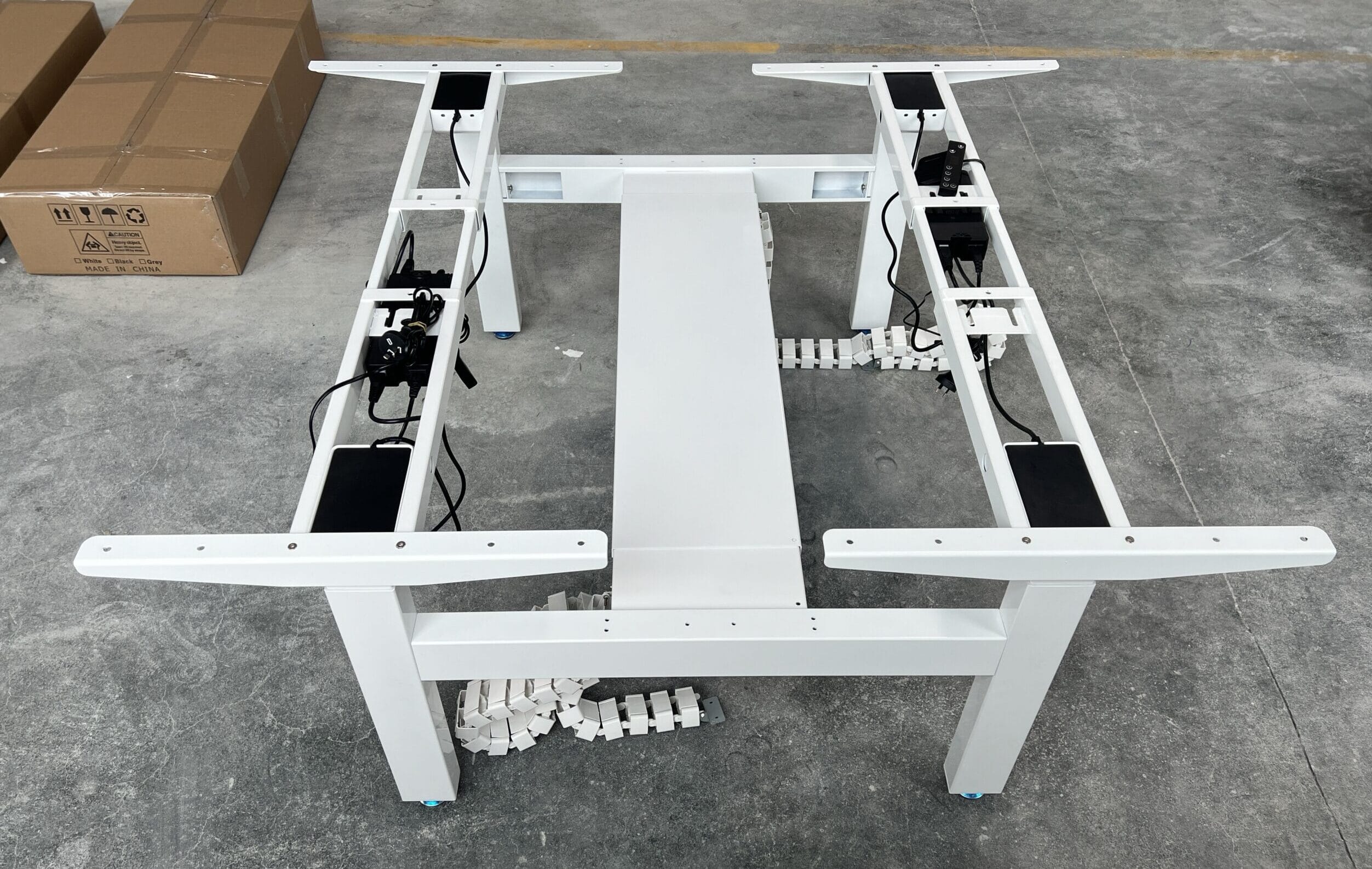

BH-Q43RS Two-Person Standing Desk Frame for Independent Facing Workstations
BH-Q43RS combines four motors, four lifting columns, and two independent control systems in one facing workstation frame. Each desktop raises, lowers, and carries its own rated moving load without synchronizing the other side.
Q43RS starts at 20 sets, equal to 40 independently adjustable workstations.
INDEPENDENT BY DESIGN
One shared planning module. Two separate lift routes.
Move either control below. The interactive view demonstrates the independent operating concept; it is not a dimensional drawing or synchronized-control feature.
A
B
DUAL CONTROL ROUTE
Adjust each side separately.
Each user operates a dedicated hand control. Q43RS does not use synchronized control between the two desktops.
Product boundary: Bluetooth is available only as a custom option. Synchronized control between the two desktops is not supported.
COLUMN PROFILE
Choose the visible profile without changing the product route.
INTERNAL CYCLE TEST
Test evidence belongs beside the exact frame configuration.
The approved production page should use a real Q43RS lift-test recording. Until that media is supplied, this prototype separates confirmed internal test data from the visual placeholder.
Test condition
140 kg per workstation
Recorded cycles
15,000+ cycles
Public load
130 kg per workstation
Q43RS-Round lift-test video
PROJECT FIT
Built for facing pairs that need personal adjustment.
Q43RS gives open-plan teams a paired footprint without turning the two users into one synchronized desk. It is suited to benching plans, team neighborhoods, dealer programs, and repeated two-person modules.
Review commercial workstation planning
Open-plan facing pairs
Two people face each other while keeping separate desktop height and hand-control operation.
Shared services and clearance
Confirm desktop depth, screens, power, data, monitor arms, cable containment, and aisle clearances together.
Single or L-shaped desks
Use D23RS for one independent rectangular desk or T33RS for one person working across two connected wings.
DIMENSIONS AND DESKTOP REVIEW
Resolve each desktop, then resolve the pair.
Each workstation follows the D23RS-compatible width route. Final desktop size, frame width, equipment, services, and the gap or screen between users must be reviewed as one paired module.
WORKSTATION A
ACOUSTIC SCREEN
WORKSTATION B
Each frame width: 1050-1800 mm / 41.3-70.9 in
1050-1800 mm each 41.3-70.9 in per workstation
Confirm both frame widths against the desktop and cable plan.
Up to 2000 x 800 x 25 mm each 78.7 x 31.5 x 0.98 in
A recommended review envelope, not a fixed supplied top size.
Standard / Europe / US
Confirm final range, desktop thickness, floor condition, and destination configuration in the quotation.

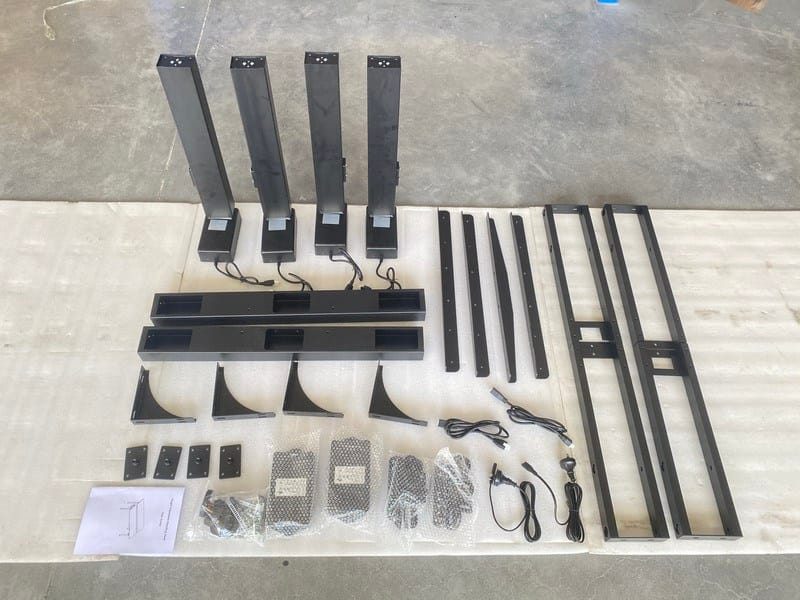

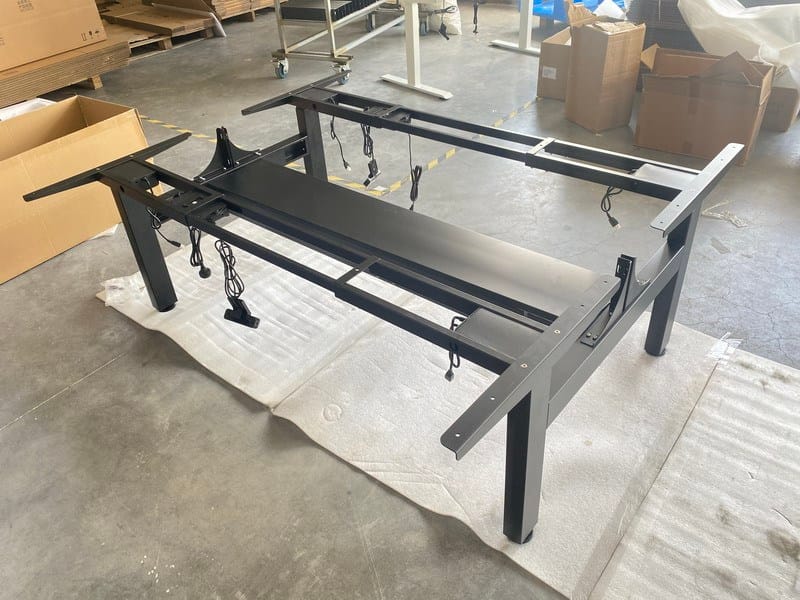

50 x 80 mm rectangular

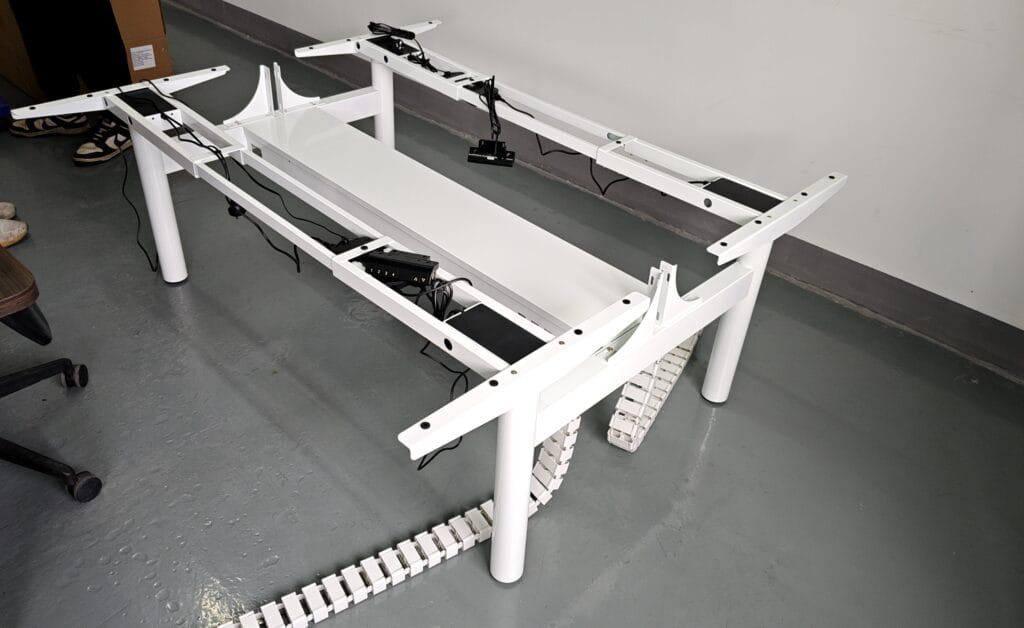

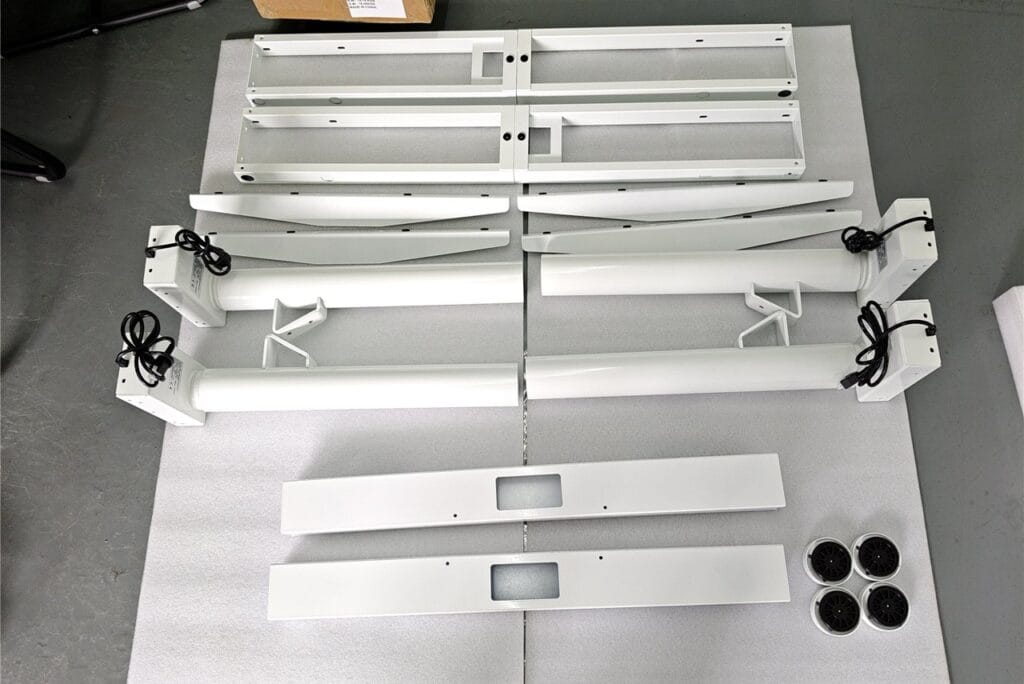

70 mm round
70 mm round
Visible profile selection retains corresponding Q43RS performance specifications.
PROJECT QUANTITY
Plan in sets. Report in workstations.
One Q43RS set creates two independent workstations. Use the stepper to translate a preliminary set count into workstation and frame-carton quantities for the project brief.
Frame carton gross weight is approximately 52 kg per Q43RS set. Extension cable trays are packed and weighed separately.
Q43RS SETS
20
Minimum 20 sets
40
2 per Q43RS set
20
1 per Q43RS set
52 kg
Approx. per Q43RS frame carton
CONTROLS AND ELECTRICAL ROUTE
Specify two user interfaces, not one paired controller.
Each workstation uses its own hand control and independent lift system. Confirm the selected functions, voltage, frequency, plug standard, control placement, and cable path for the destination market.
Bluetooth is available only as a custom option. Synchronized operation between the two desktops is not supported.
Up / down operation
Dedicated basic control for each independently adjustable desktop.
Memory settings
Available according to the selected hand-control configuration.
Child lock and anti-collision
Selectable functions for each configured control system.
USB charging and sit reminder
Optional functions that should be confirmed for both user positions.
WORKSTATION SYSTEM
Connect services without connecting user control.
Cable containment can link repeated Q43RS modules into a cleaner project run while the two desktops in every set continue to operate independently.
01
Extended cable trays
Custom lengths can connect multiple independent two-person modules into a coordinated service route.
Plan cable containment ->02Cable spines and desktop power
Route power and data from the shared zone to each adjustable desktop without restricting travel.
Review project accessories ->03Finish and hardware
Black, white, and silver gray are standard. Eligible RAL colors and structural changes require project review.
Discuss custom options ->04Labels and packaging
Manuals, barcodes, frame labels, and printed cartons can be evaluated for eligible OEM and dealer orders.
Review OEM packaging ->TESTING, PACKING, AND DELIVERY
Keep frame data and separately packed services distinct.
These confirmed figures support configuration and quotation review. The final approved specification, cable-tray plan, packaging scope, and commercial quotation govern the order.
140 kg each
Internal test load per workstation with 15,000+ recorded cycles.
130 kg each
Rated dynamic load per workstation, including planned moving equipment.
1055 x 480 x 205 mm
Gross weight: 52.6 kg / 116.0 lb per Q43RS frame carton.
Separate
Custom cable trays are packed and weighed according to the project requirement.
Warranty: Five-year frame warranty and three years for motors, control boxes, and hand controls. Final terms are confirmed in the quotation.
Review manufacturing and QA evidence
BEFORE REQUESTING A QUOTE
Define the pair, the run, and the destination.
A floor plan, workstation schedule, desktop drawing, or services layout helps verify the Q43RS frame and extended cable-tray route before quoting.
- 01
Set quantity, total workstation count, project destination, target delivery date, and preferred delivery term.
- 02
Rectangular or Round Column, frame width, two desktop dimensions, screen arrangement, and planned equipment load.
- 03
Hand-control functions for each user, voltage, frequency, plug standard, and cable route.
- 04
Extension tray length, module count, desktop power, cable spines, monitor arms, finish, labels, and packaging requirements.
BUYER QUESTIONS
BH-Q43RS FAQ
These answers apply to the current Q43RS product route. Project-specific dimensions, options, commercial terms, and delivery details are confirmed in the final quotation.
- Can both Q43RS desktops move at different heights?
Yes. Each workstation has its own desktop, lift system, motors, and hand control. The two sides operate independently and do not use synchronized control.
- How much load can each workstation carry while moving?
The rated dynamic load is 130 kg (286.6 lb) per workstation. Review the desktop, monitors, arms, computers, accessories, and all planned moving equipment together.
- What desktop size should be reviewed for Q43RS?
Each desktop is recommended for review up to 2000 x 800 x 25 mm (78.7 x 31.5 x 0.98 in). Final suitability depends on frame width, top construction, equipment, accessory placement, and clearances between the facing users.
- Can multiple Q43RS sets share a continuous cable route?
Yes. An extended cable tray can be customized to connect multiple independent two-person modules into a coordinated run. The tray dimensions, packing, and weight are quoted separately.
- What is the Q43RS minimum project quantity?
Q43RS starts at 20 sets, equal to 40 independently adjustable workstations. The selected column profile, finish, destination, accessories, and custom requirements determine the final quotation review.
READY TO CONFIGURE THE Q43RS?
Send the floor plan, set count, destination, and shared-services brief.
B&H Ergonomics replies within 48 business hours with the next specification or quotation questions.
