012 motors2 legs / 3-stage
BH-D23RS / SINGLE WORKSTATION
A dual-motor frame for the single workstation that repeats across the project.
BH-D23RS is a dual motor standing desk frame with a two-leg, three-stage lift base for repeatable single workstations. Configure the column profile, frame width, controls, finish, electrical setup, and packaging around the final project brief.
Mixed D23RS, T33RS, and Q43RS project orders are reviewed from 40 workstations.
PRODUCT AND LIFT TEST
Review the visible profile and the actual lift route.

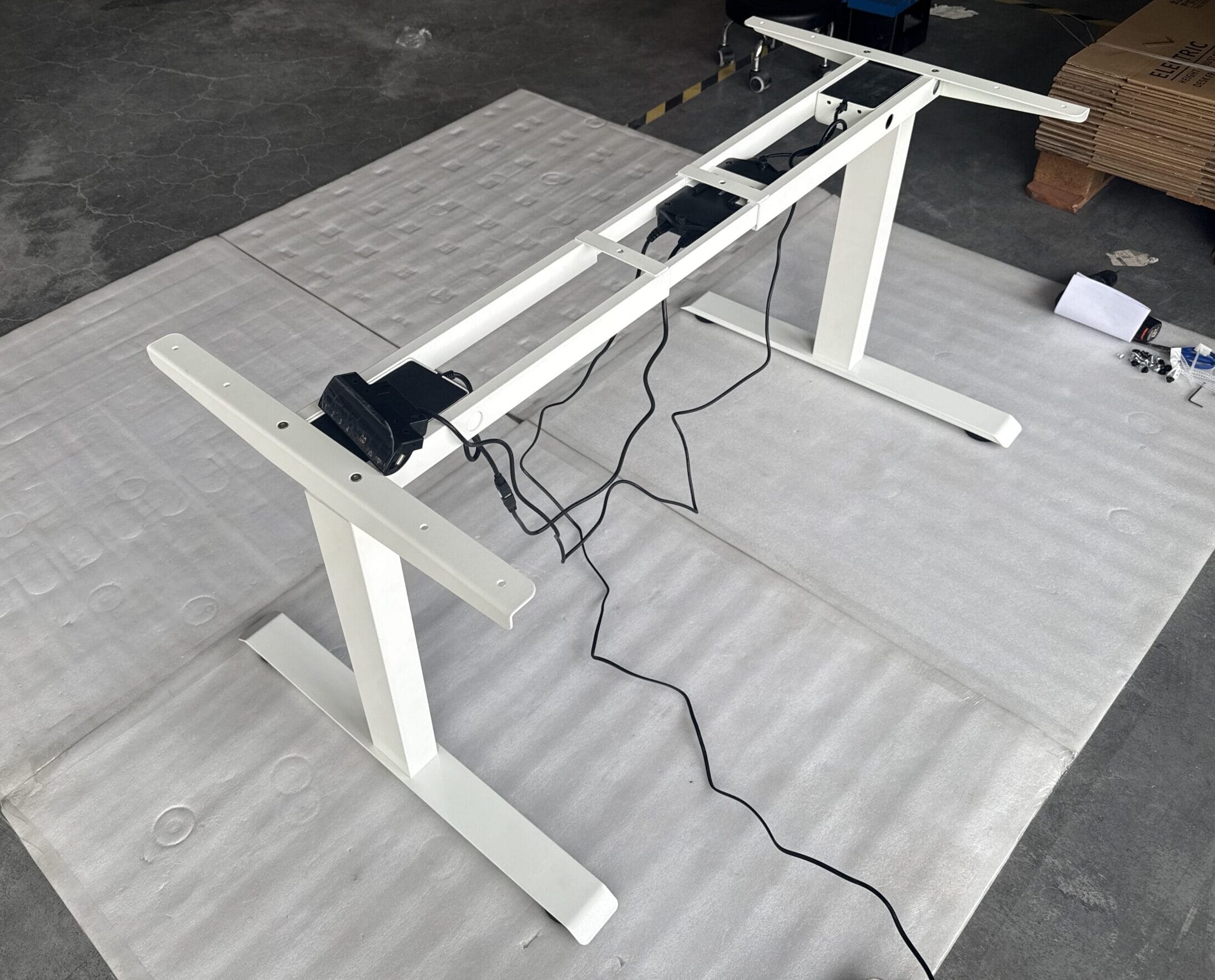

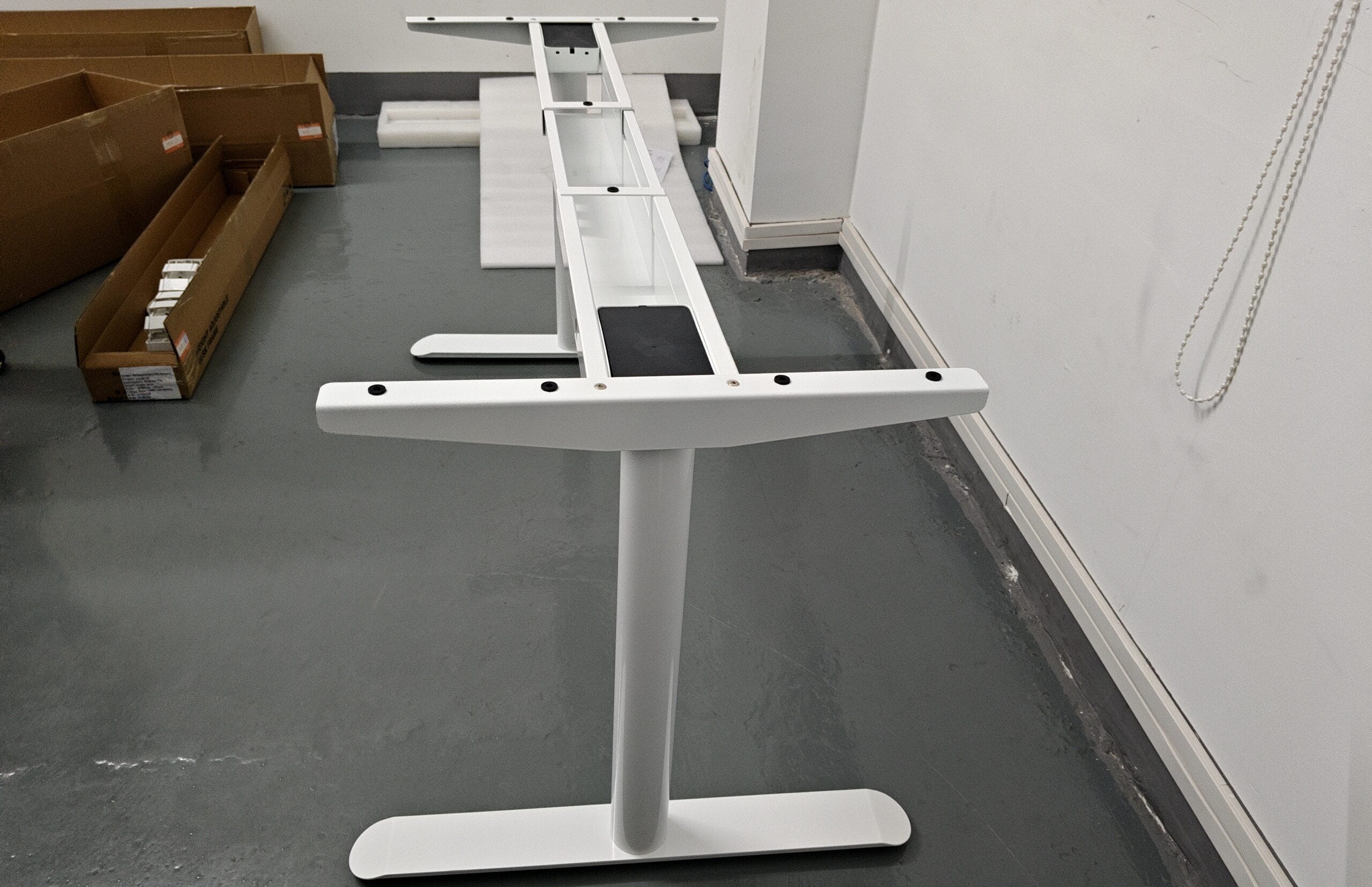

Select the column profile used in the project. Rectangular and round columns retain the corresponding D23RS performance specifications; the selection changes the visible cross-section, not the workstation route.
INTERNAL LIFT TEST
Show the frame under the same configuration being quoted.
The completed product page should show the real D23RS raising and lowering with the applicable column profile. Internal cycle-test evidence is described separately below.
Test condition
140 kg internal cycle test
Recorded cycles
15,000+ cycles
Public load
130 kg dynamic load
PROJECT FIT
Best where a single desk form needs to repeat cleanly.

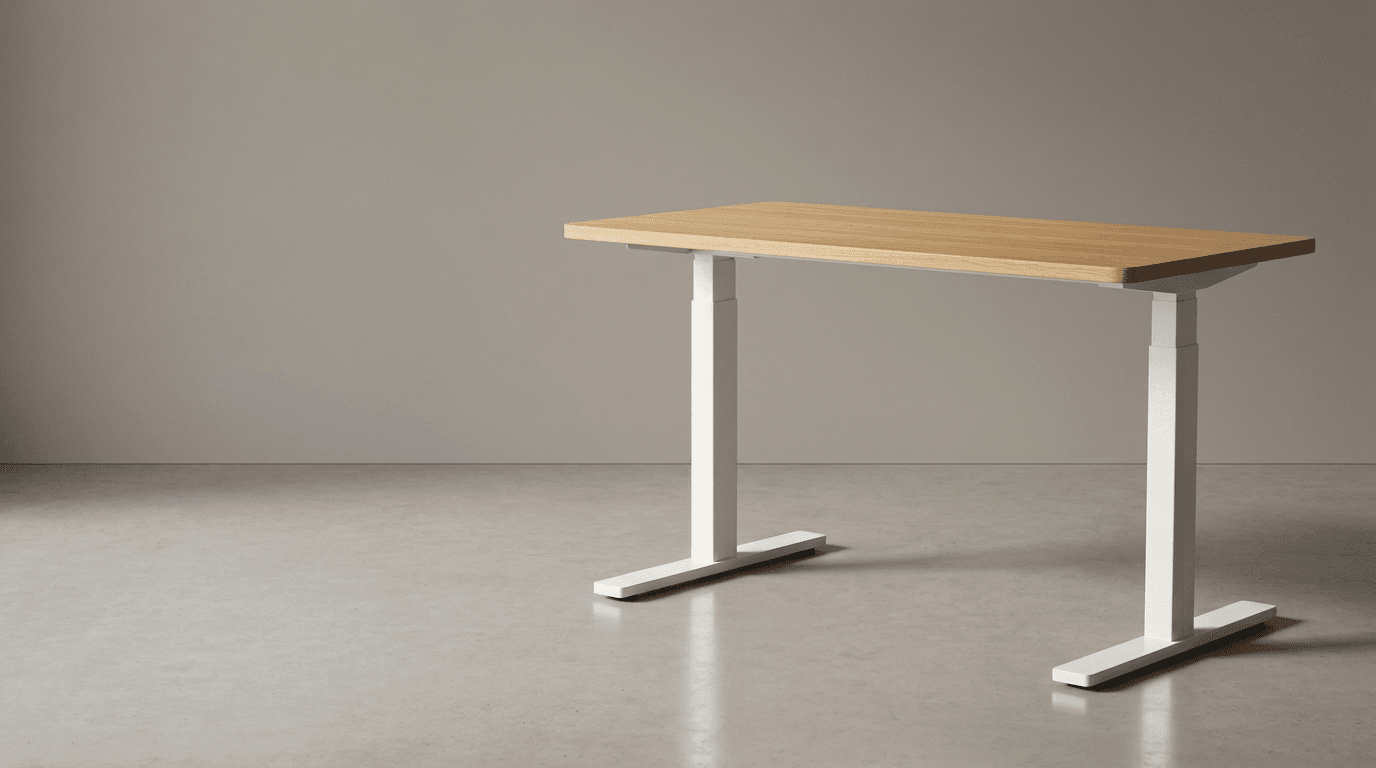

The D23RS is the direct route for independently adjustable single-user desks. It suits general office standards, focus desks, perimeter desks, private-office singles, and repeatable dealer ranges.
Review commercial workstation planning
Repeatable single workstations
One person, one lifting frame, and a defined desktop plan across offices, rows, or assigned spaces.
Equipment and desktop load
Include the desktop, monitor arms, computers, cable trays, and planned moving load before final configuration.
Connected desk geometry
Use T33RS for an L-shaped workstation or Q43RS for two independently adjustable users facing each other.
DIMENSIONS AND DESKTOP REVIEW
Set the frame width before locking the desktop.
The adjustable frame width is 1050-1800 mm (41.3-70.9 in). D23RS desktop sizing is reviewed with the overall workstation, equipment, accessory plan, and edge clearances.
1050-1800 mm / 41.3-70.9 in frame width3-stage lift
Adjustable across the D23RS base for the confirmed desktop and workstation plan.
Common US sizes within this review envelope include 48 x 24, 60 x 30, and 72 x 30 in with a 3/4 in top. A nominal 1 in top is 25.4 mm and requires confirmation.
Confirm the final height family, desktop thickness, and floor conditions with the destination brief.
Choose the visible column cross-section that supports the interior and hardware direction.
CONTROLS AND DESTINATION POWER
Configure the hand control around the users and electrical market.
The D23RS can be specified with the user controls needed for the project. The final control panel, voltage, frequency, plug standard, and cable route are confirmed with the destination and order configuration.
Bluetooth is available as a custom option; it is not included in the standard D23RS configuration.
Up / down operation
Base control for an independently adjustable desk.
Memory settings
Available according to the selected hand control.
Child lock and anti-collision
Selectable functions for the configured control system.
USB charging and sit reminder
Optional features that should be matched to the selected hand control.
WORKSTATION SYSTEM
Use the frame as the base of a complete workstation plan.
The D23RS specifies the lift base. Cable routing, power access, monitor support, finish, and packaging make the finished desk suitable for the project.
01
Cable trays and spines
Plan cable containment, vertical cable routing, and repeated desk runs around the floor layout.
Project accessories ->02Desktop power and monitor support
Review power/data openings and monitor-arm compatibility with the desktop and equipment plan.
Workstation accessories ->03Finish and hardware
Black, white, and silver gray are standard. Eligible RAL colors and structural changes require project review.
Custom frame options ->04Packaging and branding
Frame labels, manuals, barcodes, and printed cartons are evaluated for eligible OEM and dealer orders.
OEM packaging ->TESTING, PACKING, AND DELIVERY
Use the technical details to reduce quoting risk.
Internal testing and packing data help establish the configured D23RS route. They are not a substitute for the final approved specification, packaging plan, or commercial quotation.
Internal cycle test load with 15,000+ recorded cycles.
Rated dynamic load. Review the desktop, equipment, accessories, and planned moving load together.
Gross weight: 29 kg / 63.9 lb per frame carton.
Delivery terms, destination eligibility, timing, and scope are confirmed in the project quotation.
Warranty: Five-year frame warranty and three years for motors, control boxes, and hand controls. Final terms are confirmed in the quotation.
Review manufacturing and QA evidence
BEFORE REQUESTING A QUOTE
Bring the details that define the working desk, not only the frame model.
Send the available project information. A floor plan, workstation schedule, or desktop drawing helps verify the D23RS configuration before the quote is finalized.
- 01
Quantity, project destination, target delivery date, and preferred delivery term.
- 02

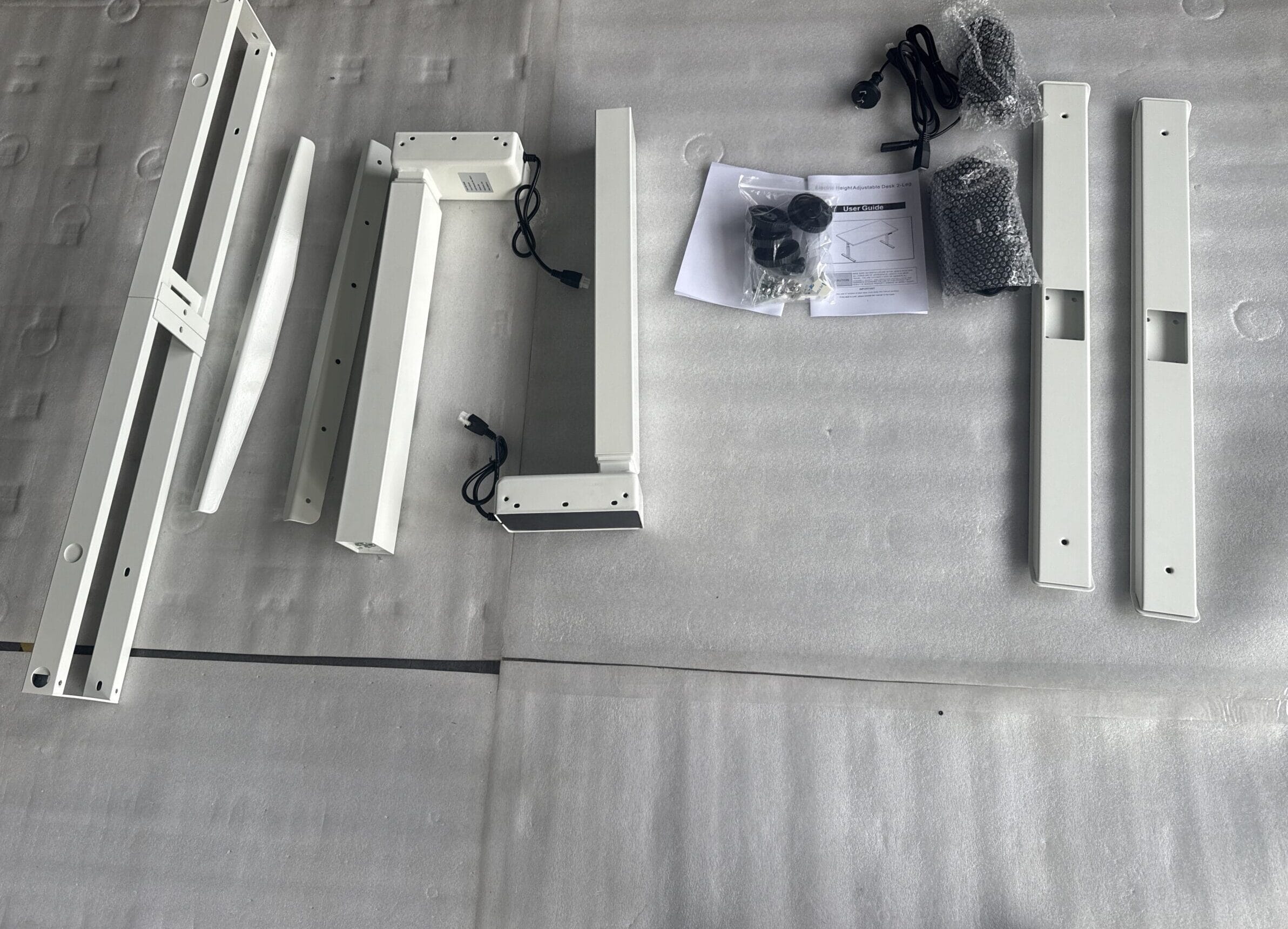

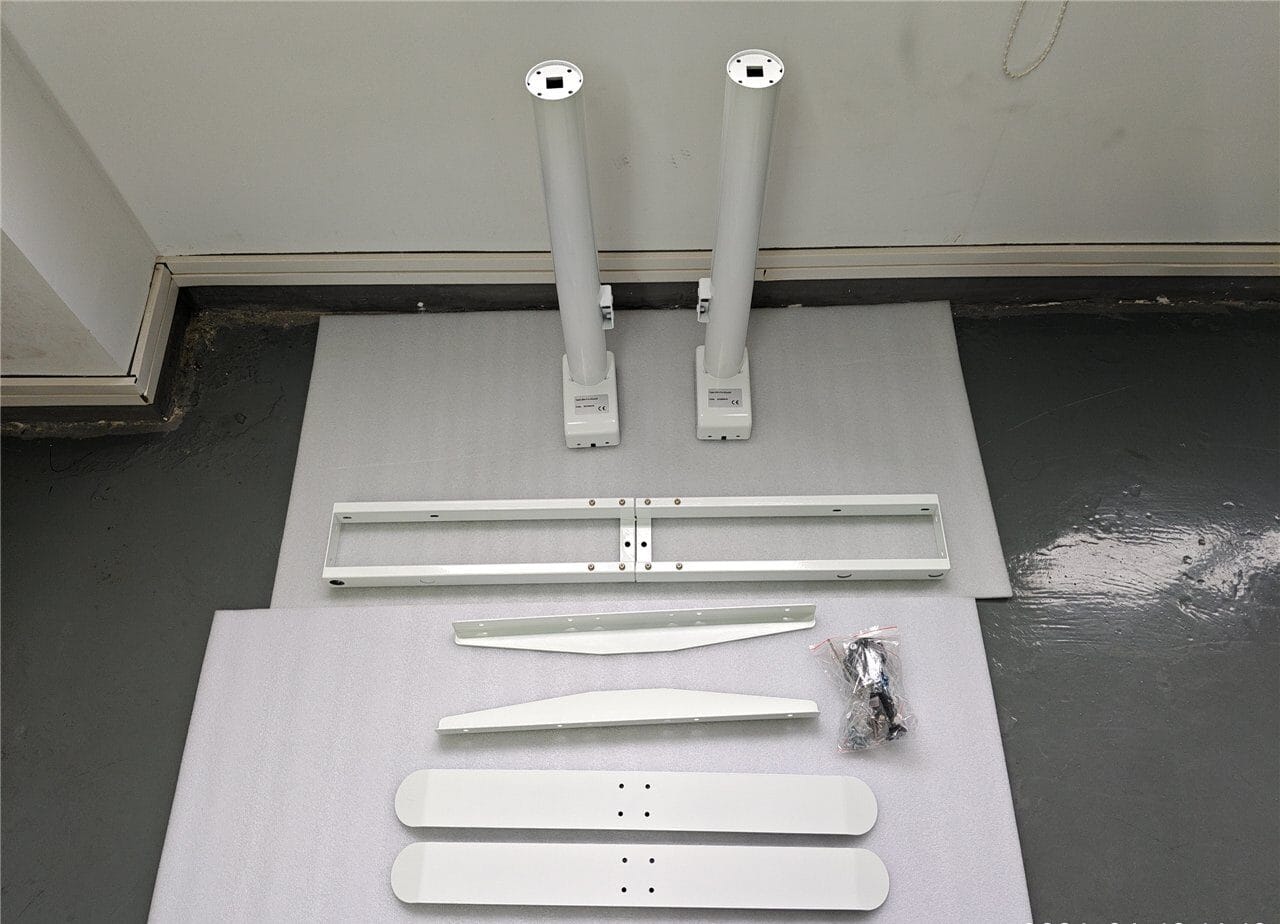

Rectangular Column (50 x 80 mm / 1.97 x 3.15 in) or Round Column (70 mm / 2.76 in diameter), frame width, desktop dimensions, and planned equipment.
- 03
Finish, hand-control functions, voltage, frequency, plug standard, and cable requirements.
- 04
Accessory, label, manual, carton, or private-label packaging requirements when applicable.
BUYER QUESTIONS
BH-D23RS FAQ
These answers apply to the current D23RS product route. Project-specific dimensions, accessories, commercial terms, and delivery details are confirmed in the final quotation.
What type of workstation is BH-D23RS designed for?
BH-D23RS is a dual-motor, two-leg, three-stage lift base for independently adjustable single workstations. It is suited to standard office desks, focus areas, perimeter desk runs, and repeatable dealer configurations.
Does the round column option change D23RS performance?
No. The 50 x 80 mm (1.97 x 3.15 in) rectangular profile and 70 mm (2.76 in) round profile describe the visible cross-section of the lifting columns. D23RS structure and public performance specifications remain the same; the project quote confirms the chosen profile and configuration.
What desktop size can be used with D23RS?
A desktop up to 2000 x 800 x 25 mm (78.7 x 31.5 x 0.98 in) is recommended for review. Common US sizes within this envelope include 48 x 24, 60 x 30, and 72 x 30 in with a 3/4 in top. The final desktop must be checked with the selected frame width, desktop construction, equipment, monitor arms, cable accessories, and planned moving load.
Can the control panel include memory, anti-collision, USB charging, and a sit reminder?
These functions are selectable for the configured D23RS control system. Bluetooth is available only as a custom option and is not included in the standard configuration. Confirm the required functions, electrical market, and cable plan with the quote request.
What is the D23RS project minimum?
D23RS can be reviewed within a mixed D23RS, T33RS, and Q43RS project order from a total of 40 workstations. The selected model mix, column profile, finish, destination, and custom requirements determine the final quotation review.
READY TO CONFIGURE THE D23RS?
Send the workstation plan, quantity, destination, and preferred column profile.
B&H Ergonomics replies within 48 business hours with the next specification or quotation questions.
