1 motor2 legs / 2-stage
BH-S22RS / ECONOMICAL SINGLE WORKSTATION

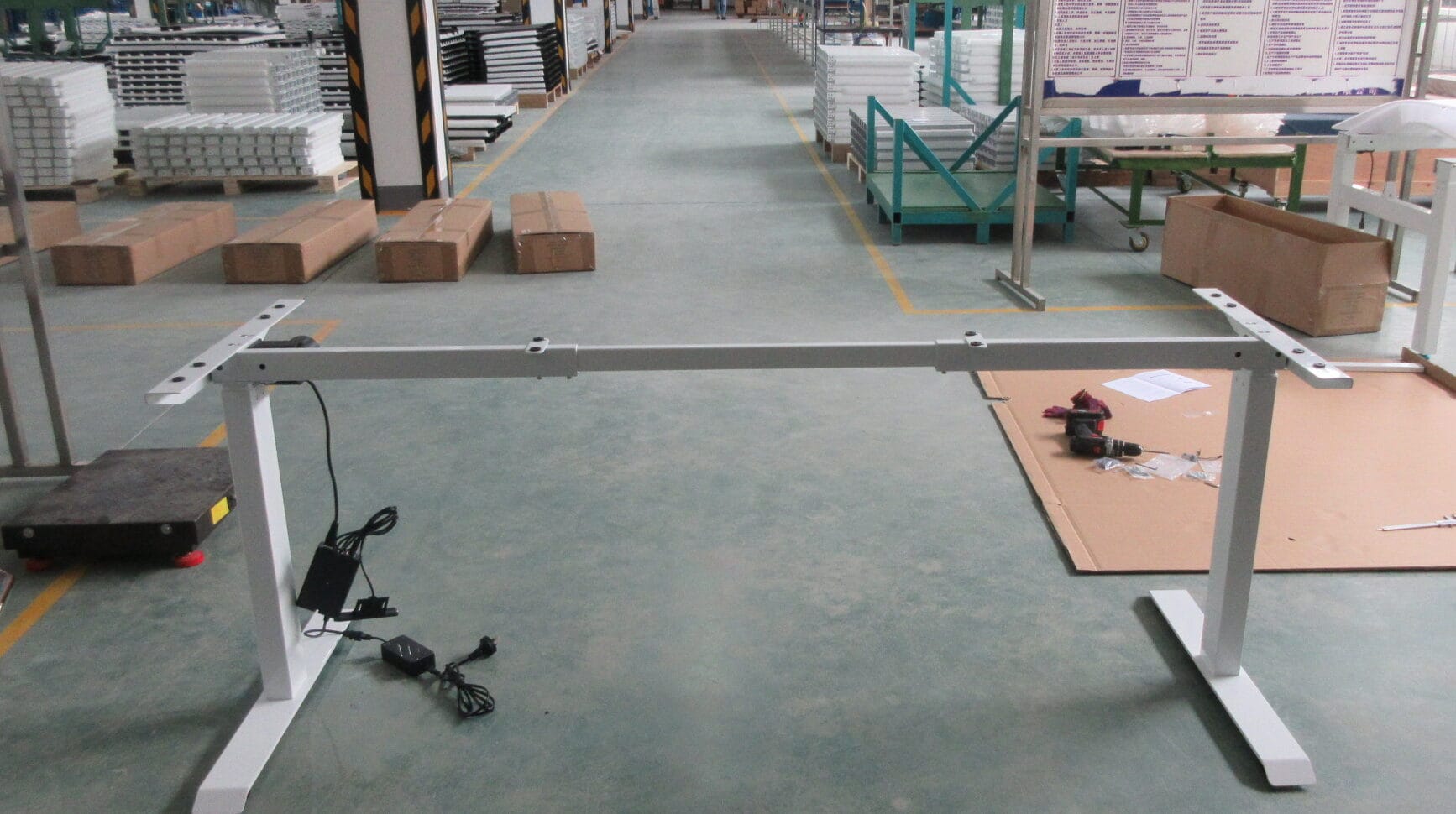

BH-S22RS Single-Motor Standing Desk Frame for Repeatable Office Workstations
BH-S22RS is a two-leg, two-stage electric frame for projects that need a straightforward sit-stand base at a controlled specification. Plan the frame, desktop, controls, destination power, and quantity together before the quotation is finalized.
S22RS is reviewed from 100 workstations when this model is included in the order.
PRODUCT MEDIA
A two-stage frame for standard single-workstation layouts.
Review the frame width, lifting range, desktop size, and moving load together before selecting the project configuration.
Specification note: Cycle-test counts, test loads, noise ratings, and packing figures can be reviewed on request when required for technical approval or logistics.
PROJECT FIT
Use S22RS when the brief values a controlled baseline.
The S22RS is the economical route for repeatable single-user workstations with a moderate moving load and a compact two-stage height family. It is a project supply product, not a retail one-off desk.
Review commercial workstation planning
Cost-conscious repeatable rows
Use one defined frame and desktop route across assigned desks, classrooms, training rooms, or dealer programs.
60 kg standard moving load
A reinforced version can be customized for loads up to 80 kg. Count the desktop, monitor, arms, computer, and accessories together before selecting S22RS for the project.
Heavier or more complex desks
Use D23RS for a three-stage standard workstation, T33RS for an L-shaped desk, or Q43RS for facing pairs.
DIMENSIONS AND DESKTOP REVIEW
Choose the top size after checking the room and the load.
The frame width is 1000-1500 mm (39.4-59.1 in), and the telescopic width can be customized for the project. The desk top is reviewed by project rather than fixed as a supplied size.
120 x 60 cm desktop
1000-1500 mm / 39.4-59.1 in720-1180 mm
1000-1500 mm 39.4-59.1 in
The telescopic width can be customized to suit the project. Confirm the final width against the selected top, equipment, and edge clearances.
720-1180 mm 28.3-46.5 in
700-1200 mm is available as a project option. Confirm the route, floor condition, and desktop thickness in the quote.
120 x 60 cm / 18 mm 47.2 x 23.6 in / 0.71 in
Review 100, 120, 140, or 160 x 60 cm tops at 18 mm thickness as project starting points.
Two-stage, two-leg
The economical S22RS route is distinct from the three-stage D23RS, T33RS, and Q43RS frames.
DESKTOP STARTING POINT
100 x 60 cm120 x 60 cm140 x 60 cm160 x 60 cm
HEIGHT ROUTE
720-1180 mm700-1200 mm option
CONTROLS AND DESTINATION POWER
Keep the hand control simple, then match the destination market.
The final hand control, voltage, frequency, plug standard, and cable route are confirmed with the destination and order configuration. S22RS can be reviewed with the control functions required by the project.
Bluetooth is a custom option, not a standard S22RS promise. Confirm any selected control features in the quotation.
Up / down operation
Core control for an independently adjustable single workstation.
Memory settings
Available according to the selected hand-control configuration.
Anti-collision and child lock
Selectable functions that require confirmation for the configured control system.
WORKSTATION SYSTEM
Add the parts that make a low-complexity frame easier to install.
S22RS can be planned with common project accessories and finish choices. These are coordinated during quotation, not treated as a retail add-on list.
01
Simple cable tray
Keep the basic power and data route contained beneath the desktop while leaving the two-stage frame clear to travel.
Review project accessories ->02Desktop power and monitor arms
Coordinate optional power modules and monitor support with the chosen top and load plan.
Plan the workstation system ->03Standard and RAL finishes
Black, white, and silver gray are standard. RAL colors are evaluated per color and project quantity.
Discuss finish options ->04Labels and private-label packaging
Manuals, barcodes, frame labels, and printed cartons are reviewed from 100 workstations.
Review OEM packaging ->COMMERCIAL REVIEW
Confirm quantity, delivery, and support before approving the baseline.
These are the common commercial inputs for an S22RS project. The final quotation controls the exact configuration, terms, and delivery scope.
100 workstations
If S22RS is included, this model is reviewed at its own 100-workstation threshold.
FOB / CIF / DDP
Destination, packaging, customs scope, and delivery responsibility are confirmed in the quote.
25-35 days
Normal production timing is confirmed against the order mix, finish, and destination requirements.
5 years / 1 year
Five years for the frame; one year for the motor, controller, and other electronic components.
Packaging dimensions and gross weight are not published for S22RS. Request the current packing data when the logistics plan requires it.
Review manufacturing and QA evidence
BEFORE REQUESTING A QUOTE
Bring the row plan and the real moving load.
A workstation schedule, desktop plan, or floor plan helps confirm whether S22RS is the right economical route before the order is quoted.
- 01
Model quantity, total workstations, project destination, target delivery date, and preferred delivery term.
- 02
Desktop size and thickness, frame width, equipment list, monitor arms, and planned moving load.
- 03
Standard or extended height route, control functions, voltage, frequency, plug standard, and cable path.
- 04
Finish, labels, private-label packaging, cable accessories, desktop power, and any shop-drawing needs.
BUYER QUESTIONS
BH-S22RS FAQ
These answers describe the current S22RS product route. Project-specific dimensions, options, commercial terms, and delivery details are confirmed in the final quotation.
What is the BH-S22RS moving load?
The standard rated dynamic load is 60 kg (132.3 lb). A reinforced version can be customized for loads up to 80 kg (176.4 lb). Count the desktop, monitor, arms, computer, and accessories together before approving the frame.
What height and width ranges are available?
The standard height route is 720-1180 mm (28.3-46.5 in), with a 700-1200 mm project option. Frame width adjusts from 1000-1500 mm (39.4-59.1 in), and the telescopic width can be customized for the project.
Which desktops should be reviewed with S22RS?
Project starting points include 100, 120, 140, or 160 x 60 cm tops at 18 mm thickness. Final desktop dimensions are confirmed against frame width, equipment, and edge clearances.
What is the minimum S22RS project quantity?
When S22RS is included in an order, this model is reviewed from 100 workstations. One S22RS set equals one workstation.
Can I request cycle-test, noise, or packing information?
These figures are not listed as standard S22RS specifications. Request the current project-specific information when it is needed for technical approval or logistics.
READY TO CONFIGURE THE S22RS?
Send the row plan, moving load, destination, and quantity.
B&H Ergonomics replies within 48 business hours with the next specification or quotation questions.
